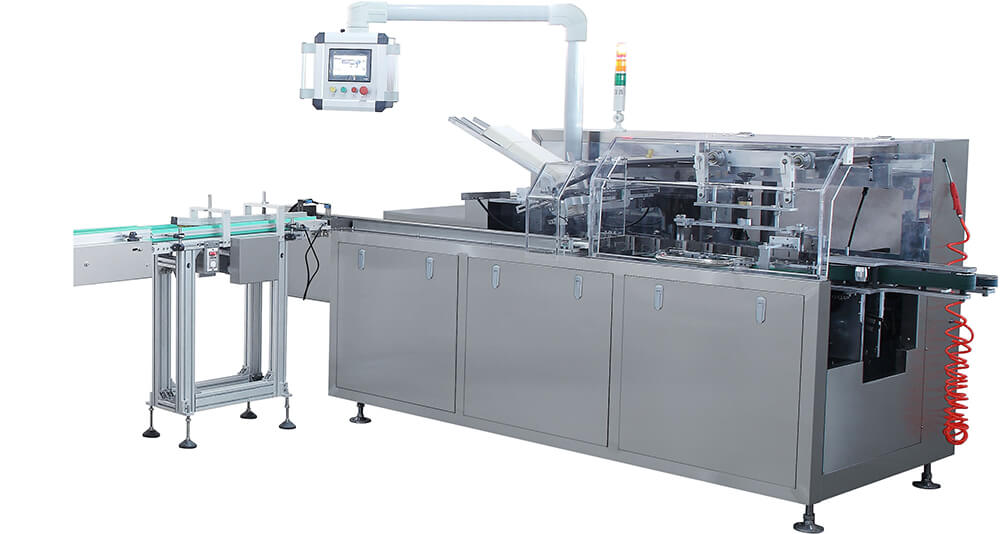

Automatic Cartoning Machine DXH-130

Automatic Cartoning Machine DXH-130


The machine suitable for automatic feeding and packing such as medicine blister, bottle, plaster, granule and some similar bag type products into the carton. Automatic feeding structure adjust conveniently, randomly set the bag number in touch screen. Online products feeding and detecting, leaflet folding (1-4 folds) and feeding, leaflet detecting, carton opening and forming, products and leaflet pushing into carton, printing lot number, sealing carton with tuck-in or hot melt glue device. Automatic reject lacking of package products and leaflet, convey the finished products. This machine appearance all uses the high quality stainless steel cover, the work surface by the organic glass doors and windows closed, strictly according to the medicine industry “GMP” standard request innovation design. The machine can be used single or joint with other equipment for a production line.
Automatic Cartoning Machine DXH-130



  • Adpot International famous brand of electrical component such as PLC. Frequency inverters, etc.
  • Adopt Human-machine operation System.
  • Automatically stop when machine is overloaded.
  • Automatically reject lacking of package products and leaflet.
  • Automatically display trouble, alarm and counting.
  • Stable performance, easy operation.


Model DXH-130
Capacity 80-100 boxes/min
Box Size L(70-230)*W(30-90)*H(20-70)mm
Box Quality requirement 250-350g/m2
Working Pressure ≥0.6mpa 20m3/h
Motor power 380V 50Hz 1.5kw
Overall dimension 3280*1200*1700mm
Machine weight 1500kg
