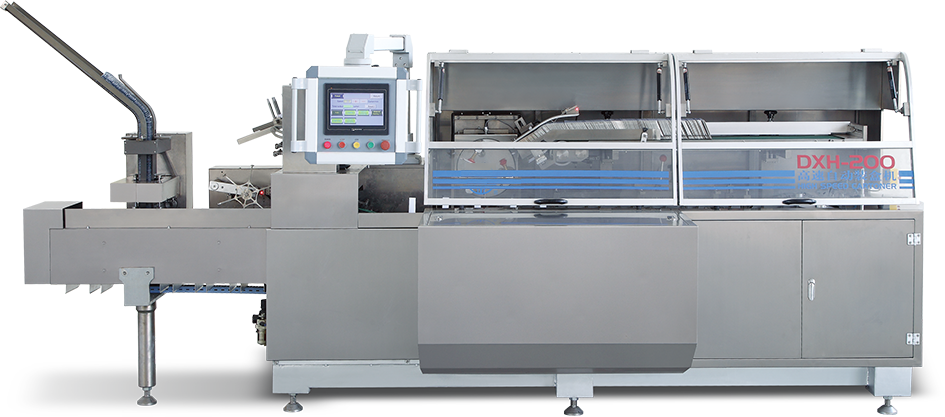

High Speed Cartoning Machine DXH-200

High Speed Cartoning Machine DXH-200

DXH-200

the Max. speed is 200boxes/min

DXH-200 High-speed Automatic Cartoning Machine belong to the continuity, High speed, incorporated pneumatic-photo-electro-machanic High technology products. The machine suitable for automatic feeding and packing products such as ALU-PVC Blister, bottle,cosmetics, commodity, hardware, card, and someother similar products into the carton, which can automatic finish the leaflet folding, carton opening, feeding, printing lot number, sealing, ect.

The machine adopt PLC control,and the photoelectricity detecting each parts, can automatic show the reason when the machine stoped by abnormity, easy for eliminate the failure. The machine can be used single or joint with pillow-type packing machine or other equipment for a production line.

Features

  • Adopt International famous brand of electrical component such as PLC, Frequency inverters,etc.
  • Adopt Human-machine operation system.
  • Servo feeding suitable for different specification Alu-pvc blister.
  • Automatically stop when machine is overloaded.
  • Autoamatically reject lacking of package products and leaflet.
  • Automatically display trouble, alarm and counting.
  • Stable performance,easy operation.

Specifications

Model DXH-200
Capacity 80-200 boxes/min
Box Size L(70-200)*W(50-120)*H(14-70)mm
Box Quality requirement 250-350g/m2
Working Pressure ≥0.6mpa 20m3/h
Motor power 380V 50Hz 5kw
Overall dimension 4070×1600×1600mm
Machine weight 3100kg
