Side Load Case Packer

Side Load Case Packer

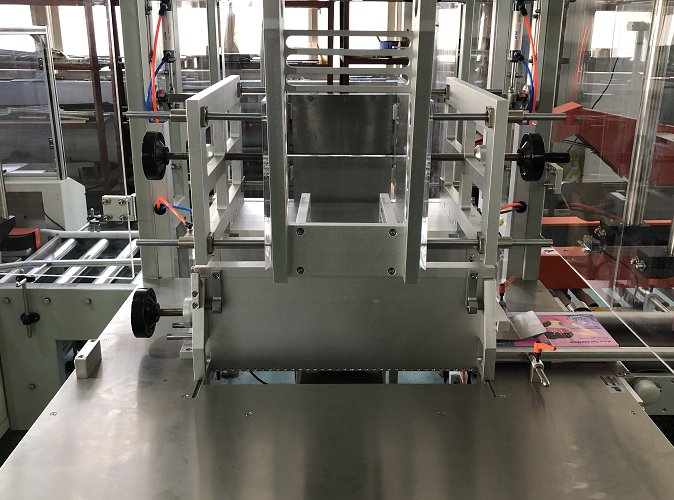

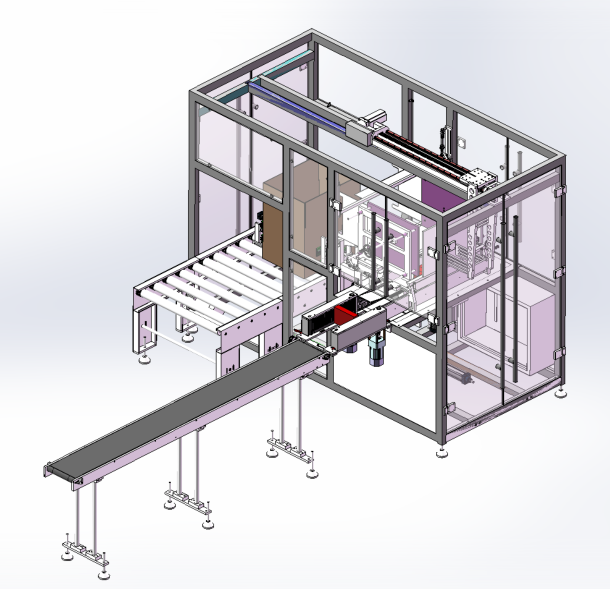

The Side Load Case Packer is mainly used for loading cartons into case.When the packs reach the stacking unit, the stacked packs push into the case when the required number of lines is stacked, and seal the case by tape.

Side Load Case Packer

Side Load Case Packer

Specifications

Model CP550
Case Size Min
(LxWxH)
200*150*100mm
Case Size Max
(LxWxH)
600*500*350mm
Speed 3-6cases/min
Machine Dimension 5200*2300*1900mm
Machine Weight 1200kg
Total Power supply 1.4KW
Voltage Supply 220V 50/60HZ
