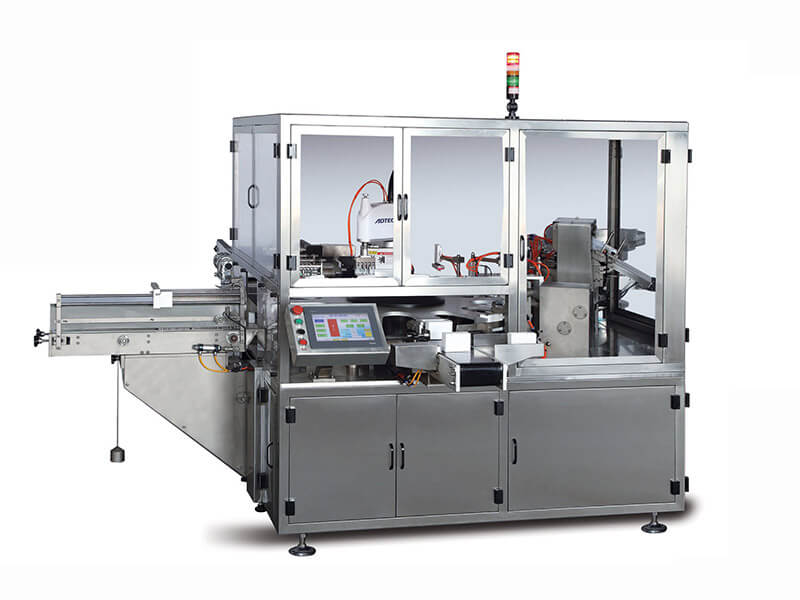

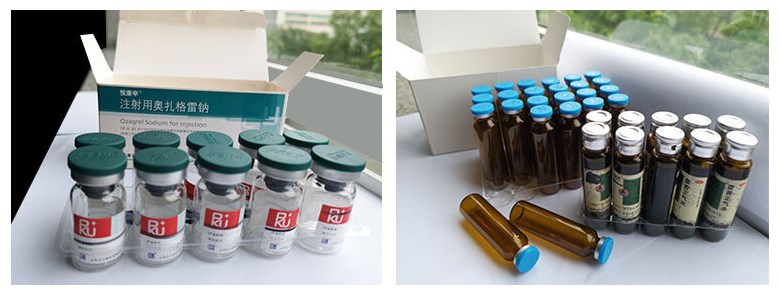

The high speed vertical cartoning machine is equipped with robot, which can load pharmaceutical vials into the carton, and MAX. speed can reach 60 boxes/min.
| Model | ZHJ-60 |
| Capacity | 20-60 boxes/min |
| Min Box Size | L85mm×W37mm×H40mm |
| Max Box Size | L180mm×W60mm×H65mm |
| Box Quality requirement | 300-350g/m2 |
| Working Pressure | 0.5-0.8Mpa 150L/min |
| Motor power | 380V 50Hz 3.5KW |
| Overall dimension | 7200×2600×1750 |
| Machine weight | 1500kg |
