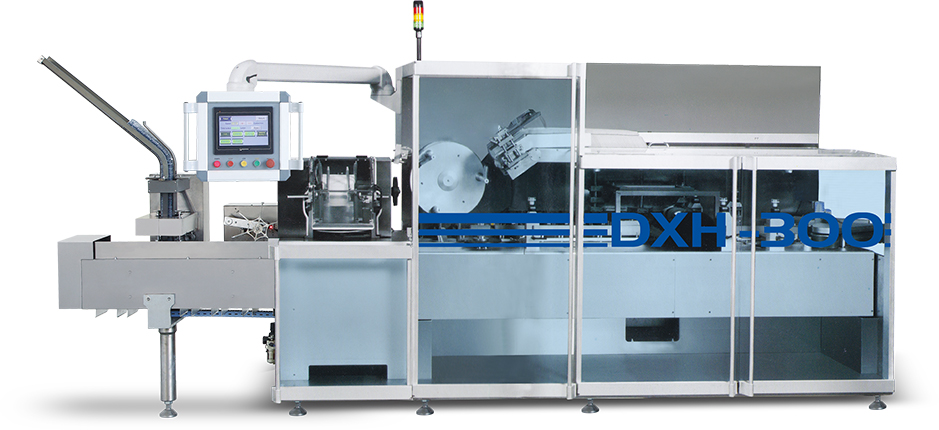

High Speed Cartoning Machine DXH-300

High Speed Cartoning Machine DXH-300 the Max. speed is 300boxes/min DXH-300 High-speed Automatic Cartoning Machine belong to the continuity, High speed, incorporated pneumatic-photo-electro-machanic High technology products. The machine suitable for automatic feeding and packing products such as ALU-PVC Blister, bottle,cosmetics, commodity, hardware, card, and someother similar products into the carton, which can automatic finish the leaflet folding, carton opening, feeding, printing lot number, sealing, ect. The machine adopt PLC control,and the photoelectricity detecting each parts, can automatic show the reason when the machine stoped by abnormity, easy for eliminate the failure. The machine can be used single or joint with pillow-type packing machine or other equipment for a production line.
High Speed Cartoning Machine DXH-300 Touch Screen

Touch Screen

High Speed Cartoning Machine DXH-300 Suction Box

Suction Box

High Speed Cartoning Machine DXH-300 Carton Feeder

Carton Feeder

High Speed Cartoning Machine DXH-300 Sealing

Sealing

Video

Features

  • Adopt International famous brand of electrical component such as PLC, Frequency inverters,etc.
  • Adopt Human-machine operation system.
  • Servo feeding suitable for different specification Alu-pvc blister.
  • Automatically stop when machine is overloaded.
  • Autoamatically reject lacking of package products and leaflet.
  • Automatically display trouble, alarm and counting.
  • Stable performance,easy operation.

Specifications

Model DXH-300
Speed 100-260Boxes/Min
Box Size L(70-180)×W(35-84)×H(15-70)mm
Box Quality requirement 250-400g/m2
Quality of Leaflet 65-75g/㎡
Leaflet size unfold (100-260)×(90-160)mm
Leaflet folded(1-4 line) (100-260)×(20-40)mm
Working Pressure ≥0.6mpa 20m3/h
Motor power 380V 50Hz 2.2kw
Overall Dimension L4550XW1600XH1700mm
Machine Weight 2500KG
