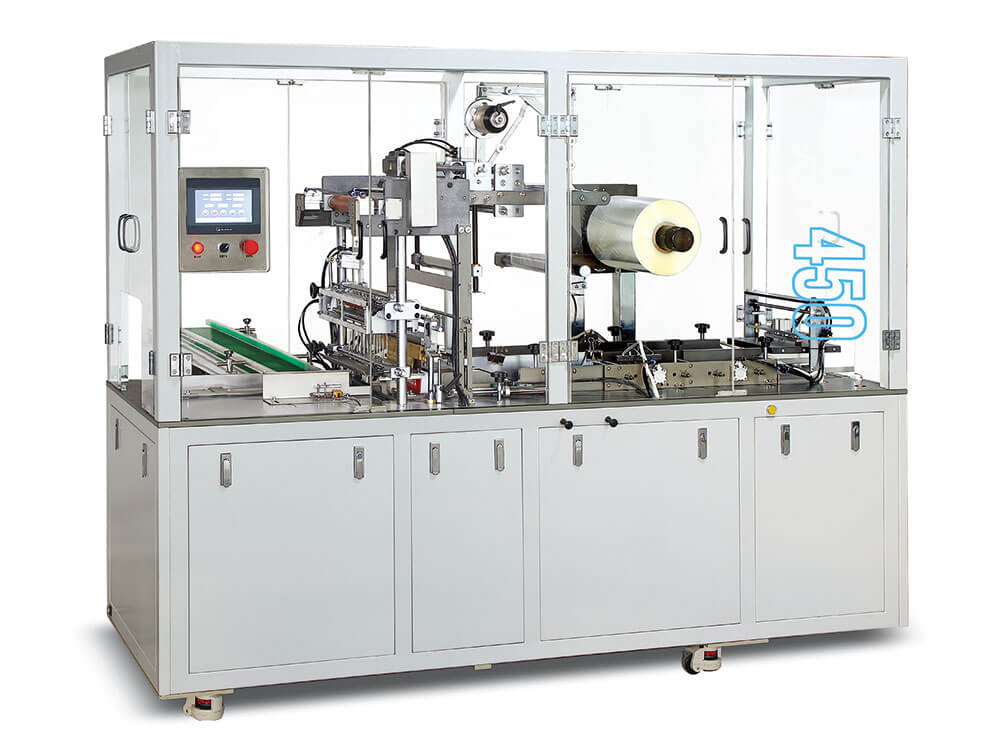

The BTB-450 is a fully automatic trailing edge seal overwrapping machine capable of wrapping speeds of up to 50 packs per minute.
Wrapping Process
Feed Conveyor
Edge Seal
Folding
Top and Bottom Sealing
Specifications
| Model | BTB-450 |
|---|---|
| Packing Speed | 30-60 PCS/MIN |
| Packing Size | L: 60-360mm; W: 30-240mm; H: 16-120mm |
| Packing Material | BOPP Film, PVC |
| Voltage Supply | 220V 50/60HZ |
| Total Power supply | 8.0KW |
| Working Pressure | ≥0.6mpa 20m3/h |
| Overall Dimension | (L)2960×(W)1870×(H)1700mm |
| Machine Weight | 600KG |
