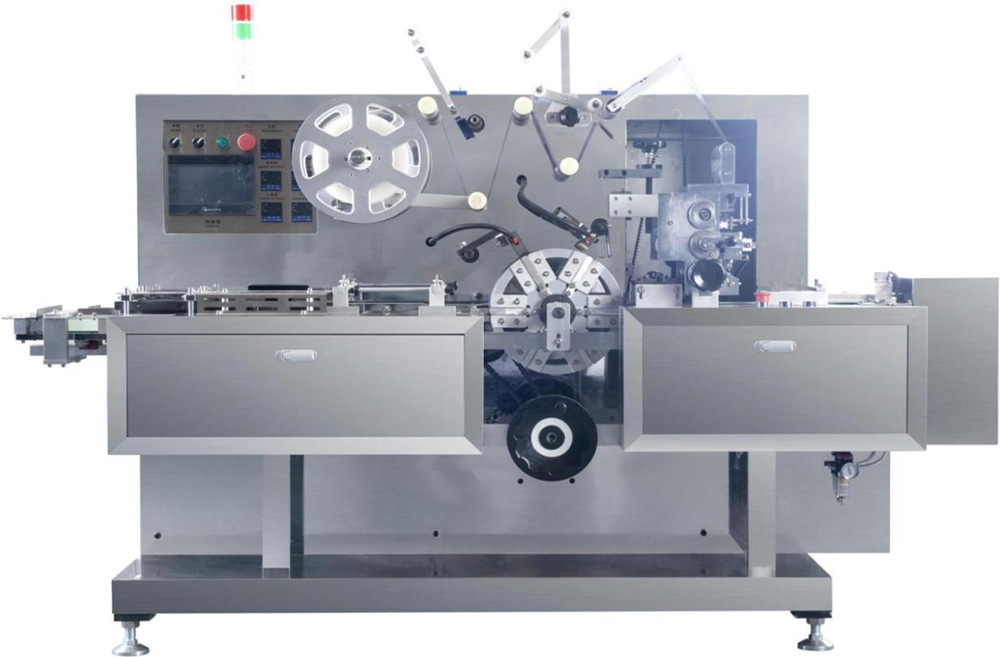

Suitable for high-speed production, the speed can reach 120-150 per minute.
The packaging effect is similar to that of cigarette.
Operator HMI Control Panel
Film Spindle
Rotary Turret Pack Process
Teflon heating conveyor belt
Features
- High speed packing of single boxes.
- CAM driven ensures machine stable running.
- Stain steel 304 machine body and organic glass cover.
- Tear tape,ink printer,sensor is optional.
Specifications
| Model | DTS-160 |
|---|---|
| Packing Speed | 80-120 PCS/MIN |
| Packing Size | L: 40-200mm; W: 20-110mm; H: 10-60mm |
| Packing Material | BOPP Film, PVC |
| Voltage Supply | 380V 50/60HZ |
| Total Power supply | 4.35KW |
| Working Pressure | ≥0.6mpa 20m3/h |
| Overall Dimension | (L)2634×(W)740×(H)1656mm |
| Machine Weight | 700KG |
